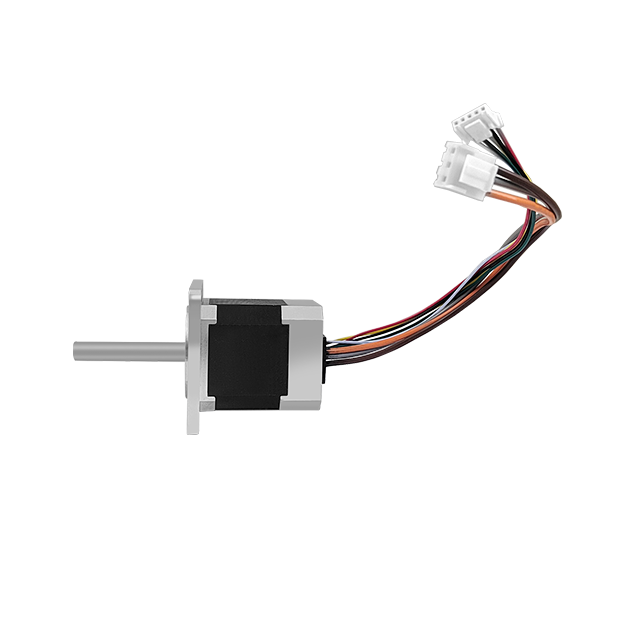

    LD-EI4252

    LD-EI4252

    • 泳池机器人

    技术参数

    MODEL
    • LD-EI4252
    VOLTAGE
    • OPERATING RANGE
    • (V/DC)
    • 23~25
    • NOMINAL
    • (V/DC)
    • 24
    NO LOAD
    • SPEED
    • (rpm)
    • 4480
    • CURRENT
    • (A)
    • 0.663
    RATED LOAD
    • SPEED
    • (rpm)
    • 3300
    • CURRENT
    • (A)
    • 4.31
    • TORQUE
    • (mNm)
    • 200
    • OUTPUT
    • (W)
    • 69.1 1
    • EFFICI ENCY
    • 66.75%
    AT MAXIMUM EFFICI ENC
    • SPEED
    • (rpm)
    • 3691
    • CURRENT
    • (A)
    • 3 .1
    • TORQUE
    • (mNm)
    • 133.67
    • OUTPUT
    • W
    • 51.67
    • EFFICI ENCY
    • 69.37%
    STALL
    • TORQUE
    • mNm
    • 759.32
    • CURRENT
    • A
    • 14.52

    CAD图纸

    LD-EI4252
